Welding Transformer 125KVA Welded Mesh Panel Machine Wire diameter 2.5--5.5mm

Brand Name : MLG

Model Number : MLG-WHJ-1500A

Certification : CE ISO

Place of Origin : Hebei China

MOQ : One set

Supply Ability : 8 sets per month

Delivery Time : 20 days

Packaging Details : packed with plastic bags, spare parts in carton box. Special packing is available according to customers' requirements.

Power supply : At least 80KW

Capacity : 270--300 m per hour

Material : low carbon steel wire, galvanized wire, stainless steel wire, ribbed wire

Welding transformer : 125KVA

Weight : 3.2T

Dimension : 2.3m*1.8m*1.5m

Contact Now

Welding Transformer 125KVA Welded Mesh Panel Machine Wire diameter 2.5--5.5mm

Product description

1.The control system adopts synchronous CNC technology, Panasonic PLC program and HMI. It is easy and convenient to operate with the touching screen.
2. Adjustable distance of the line wire that allows different opening size between the line wire distance, when input the distance of cross wire to computer, any mesh opening can be reach.
3. This welded mesh panel machine equips typical and efficient transformer, which gearless adjusted, enlarging the welding range.
4. Mesh pulling system is controlled by panasonic servo motor.
5, Welding transformer:125KVA*3PCS (24welding electrodes) ——every 8 welding heads need a water cooling transformer.
6, Wire feeding method: The line wires from coil wire.The cross wires should be pre-straightened and pre-cut. The cross wire system is controlled by stepping motor. Sends weft wires one by one automatically.The welded mesh panel machine stop working when the cross wire used up in the hopper.

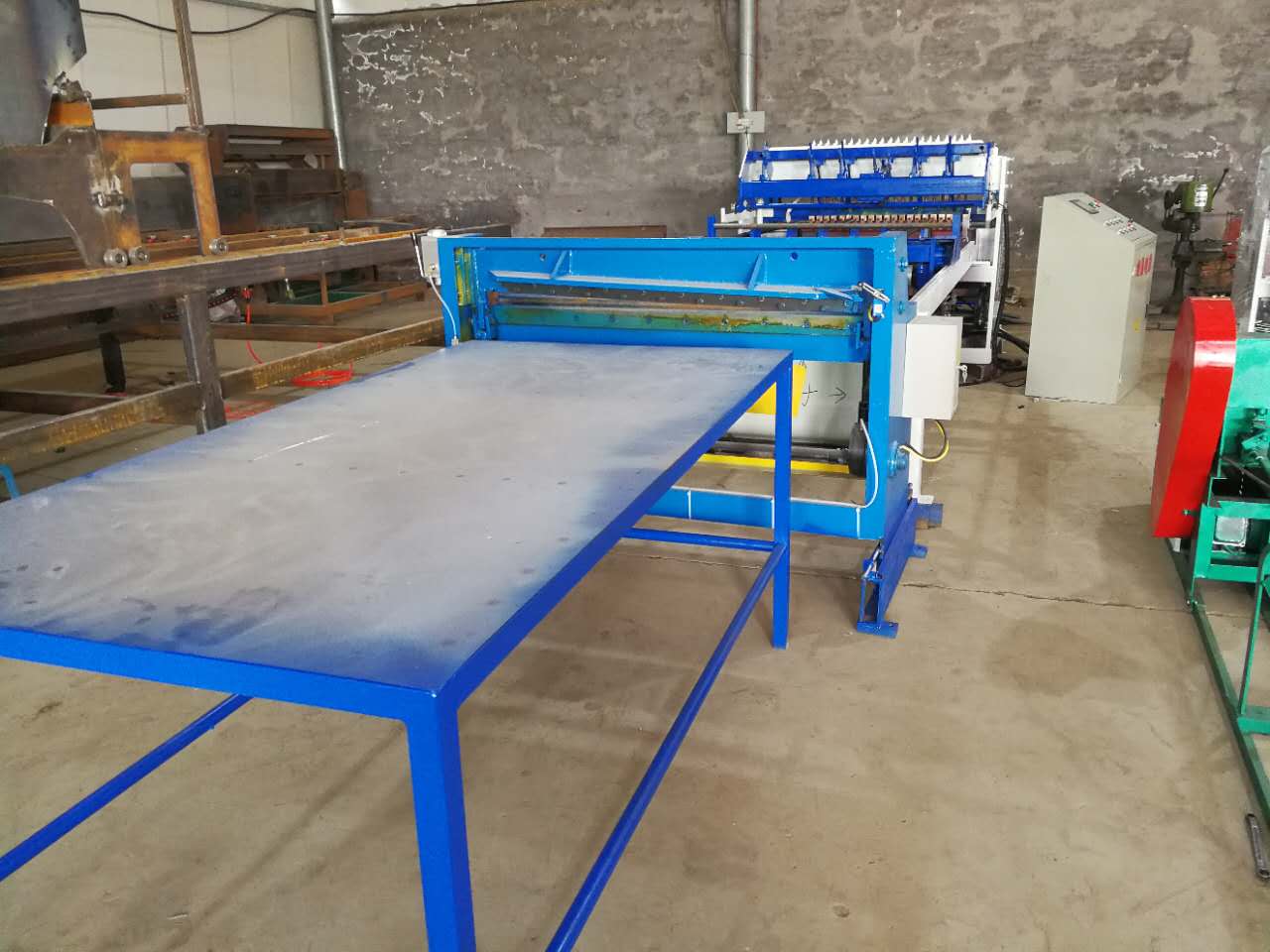

7. The welded mesh panel machine has a mesh cutting machine. The mahcine is used to cut the mesh panel length. When you input the length of mesh and mesh opening. The mesh cutting machine will cut the mesh panel according to your input date.

8, Material:Suitable for low carbon iron wire, black annealed wire or galvanized (cold galvanized, hot galvanized) processing.

Technical details:

Wire diameter	2.5--5.5mm	Line wire form	From coil
Vertical wire distance	50--200 (adjustable)	Weft wire form	Pre-cut wire
Horizontal wire distance	50--200 (adjustable)	Rated voltage	380V 50HZ(customize)
Welding panel width	Max 1500mm	Transformer power	125KVAx3PCS
Welding speed	45--60 times/min	Panel Length	Max 6m
Welding electrodes	24	Dimension	2.3m1.8m1.5m
Machine weight	3.2T	Motor power	4.0KW

Welding Transformer 125KVA Welded Mesh Panel Machine Wire diameter 2.5--5.5mm

Product Tags:

chicken mesh making machine

automatic wire mesh machine

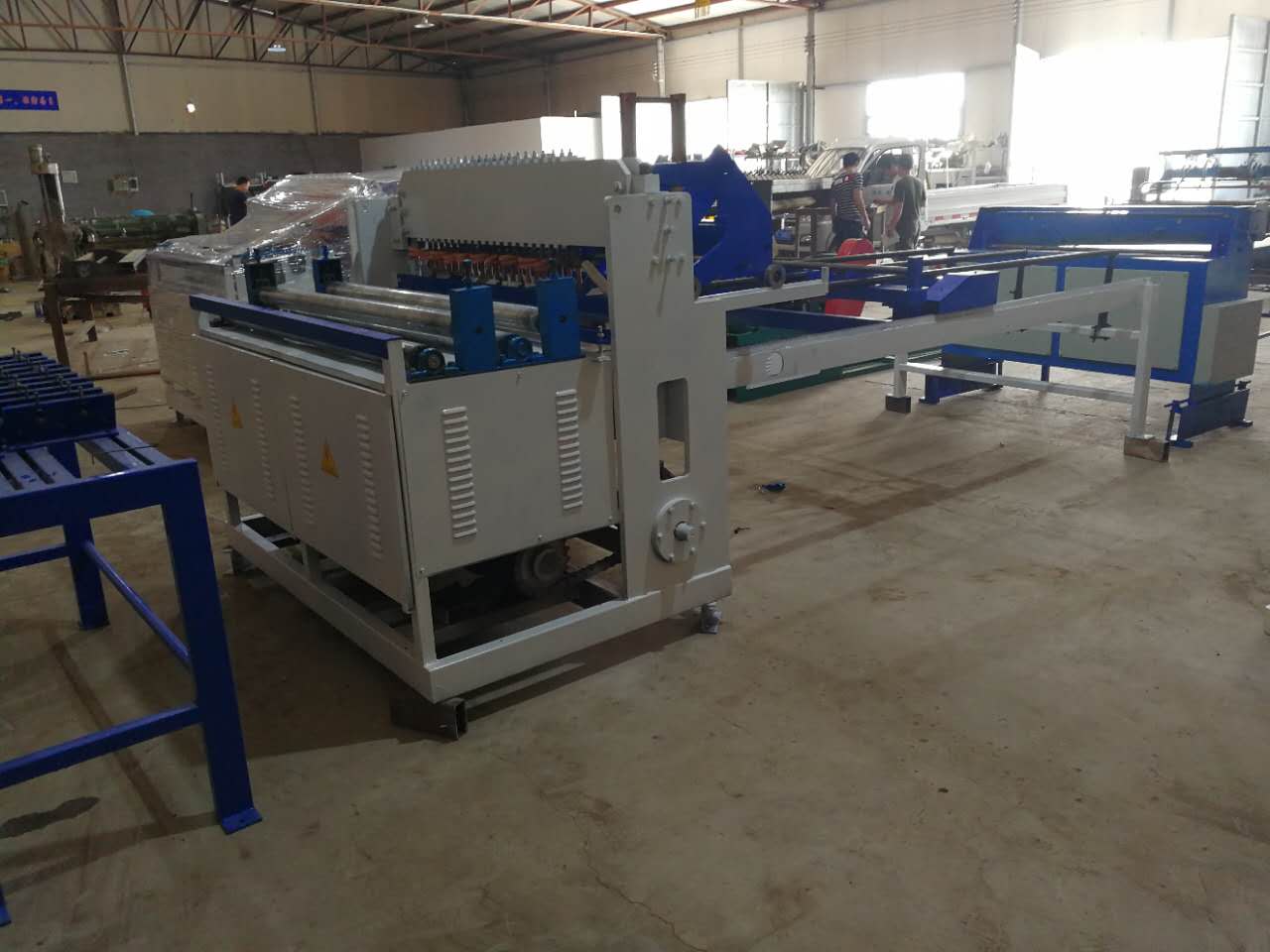

Welding Transformer 125KVA Welded Mesh Panel Machine Wire diameter 2.5--5.5mm Images
